1685
CATV MULTI-CARRIER GENERATOR

Headend/Hubsite RF multi-carrier CW test signal generator

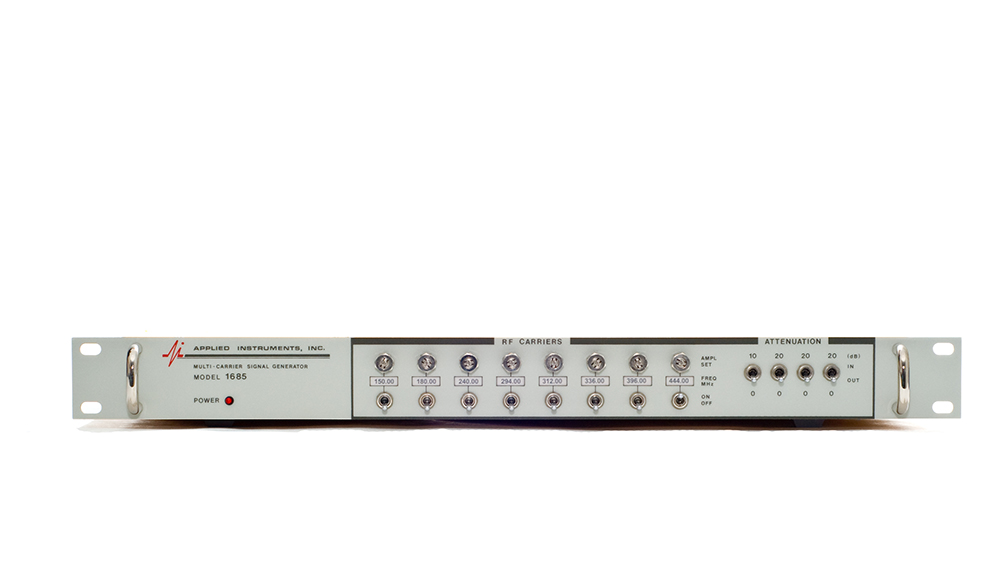

The Model 1685 is a headend/hubsite RF multi-carrier generator. It is custom-built and can be built in configurations from 1 carrier up to 8 carriers with any carrier frequencies from 5 MHz up to 1200 MHz.

Each CW carrier can be activated individually or simultaneously. The RF carriers generated are extremely clean and stable, thus making the 1685 an ideal instrument for testing/aligning the CATV forward band.




Data Sheet
Operation Manual


1685 Pricing from 1 to 8 carriers:

with attenuator module
$1,395 to $5,795

without attenuator module $1,295 to $5,695

Please contact factory to place order.

*Lead time is usually 1 to 3 weeks after receipt of order, but varies considerably and may be longer depending on quantity and carrier frequencies. Inquire for exact lead time.
